Explications des couleurs de câbles:

Noir -GND Alimentation négative, et côté bas du bouton arrière et de l'interrupteur de freinage électronique.

Rouge +3.3/5V Alimentation positive, peut accepter 3.3-5V, recommandé 5V

Blanc VESC Throttle VESC ADC1, centré (bidirectionnel)

Vert Normal Throttle Signal unidirectionnel pour contrôleur normal (ESC), PAS pour VESC

Jaune E-Brake ON/OFF ON/OFF vers GND pour le frein ESC

Bleu E-Brake Variable Frein variable pour les ESC qui le supportent, comme ninebot, xiaomi, Sabvoton, Kelly et autres.

orange Bouton vers GND pour les dispositifs de bricolage externes, tels que le régulateur de vitesse, les lumières/la corne, etc.

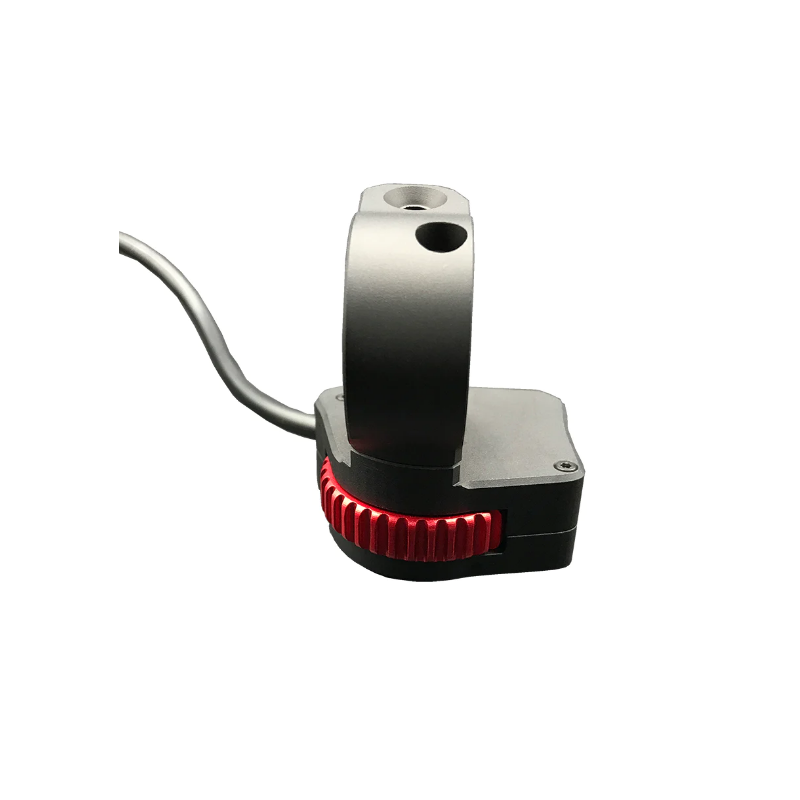

Feature

• Maximum Hand grip, specially at full throttle.
• Bidirectional operation (forward accelerate, backward e-braking) .
• Remapped 0-3.3v signal, extend the hall range to get more interference immunity, and safe for VESC and similar controllers compared to common 5V throttles.
• 5v signal out put for All standard controllers like Minimotors/ Dualtron/ zero/ Vsett and others.
• Variable e-brake up on reverse scroll.
• Standard controllers use it mid to max as throttle only, can block with screw backward rotation! Reverse scroll can be blocked by replacing one screw for a longer version (included), if user on standard controller doesn’t want it to scroll backward (one way operation)
• Button at the back can be used for external function (dedicated signal wire) .

Specification

All the values are approximate value, at 5V supply, unless otherwise specified.

Calibration

Spin-Y has three LEDs, under the wheel, to indicate the calibration state: green, yellow, red. For easy to observe the LED state, do calibration at a darker place will helps.

All the calibration are enter by hold the rear button then power on the scooter (make Spin-Y power on).

Wheel travel calibration

Spin-Y can be more accurate after calibrate the wheel travel. Both the One way or two way mode are benefited.

If you changed your supply voltage, we suggest you to calibration again, because the output bias and range of hall sensor in the Spin-Y will vary by the different supply voltage.

1. Hold the rear button, and pull backward (to right) the wheel, then power on spiny.
2. Wait 3 seconds for the yellow LED start blinking, then release rear button.
3. When yellow LED blinking, push and pull the wheel to its full travel for several times, then release the wheel, to wait until green LED on.
4. Finished, to check if the function is normal, if not, go to step 1 and try again.

Start point adjust for normal throttle

Start point is for normal ESC, usually they have start voltage at 0.7V and end voltage 4.2V.

You can observe the ESC and motor to find the right start point.

1. Hold the rear button, and the wheel at the start position you wanted, then power on spiny.
2. Wait 3 seconds for the green LED start blinking, still hold the wheel at its position, then only release the button.
3. Wait the green LED solid, then release the wheel.
4. Finished, to check if the start point is meet your requirement, if not, go to step 1 and try again.
5. Tips, if you did not hold the wheel when adjusting, the start point is set to zero, this is helpful for clear the former adjusting.

End point adjust for normal throttle

End point is for normal ESC, the ESC's acceptation of the end voltage is varying, adjusting the end point can match their requirements.

You can use a multimeter to measure the voltage of the wire (green) to get an accurate end point voltage.

1. Hold the rear button, and the wheel at the end position you wanted, then power on spiny.
2. Wait 3 seconds for the red LED start blinking, still hold the wheel at its position, then only release the button.
3. Wait the red LED solid, then release the wheel.
4. Finished, to check if the end point is meet your requirement, if not, go to step 1 and try again.
5. Tips, if you hold the wheel at it's maximum position when adjusting, the end point is set to 4.2V, this is helpful for clear the former adjusting.

The E-brake and the variable brake

When pull backward the wheel, the E-brake and variable brake wire will output a voltage, they can be used to control the controller's regenerative braking.

The difference of two brake signal is:

E-brake is a ON/OFF signal, when pull back, the E-brake wire connected to GND, when wheel at center of push forward, E-break wire off to GND.

Variable brake is a proportional (analog ) signal follows the wheel's backward travel, when wheel at center of push forward, the variable brake wire outputs 0V, when pull back, outputs a 0-4.2V voltage as well as the angle of the wheel being pulled.

The VESC throttle and normal throttle

The VESC throttle is in 3.3V range, pull backward is 0V, push forward is 3.3V, the center is 1.65V.

The default normal throttle's range:

Backward to center----0V.

Center to forward----0-4.2V.

Reminds：If you're using our Ewheel ADC adapter to wire with the SPIN-Y throttle, should NOT use VESC throttle cable, and need to use Normal Throttle cable

Connect to Adapter V2

Our Adapter V2 is designed for 5V hall system, has built in 5V-3.3V voltage translator, so recommend to set Adapter throttle supply to "5V“. The rear button can be used as cruise control, and recommend to set VESC ADC control mode to "Current No Reverse Brake ADC2 Button" to use cruise feature.

Make connection as below:

FAQ

How does on/off brake and external cruise button function work?

When the rear button is pressed, it's wire(orange) will connect to the GND, there is a 22 ohm resistor serial in the circuit, to prevent short. When button released, the connection to the GND will be open.

When the pull the wheel backward (to right), it's wire(yellow) will connect to the GND, there is a 22 ohm resistor serial in the circuit, to prevent short. When wheel released or pushed forward, the connection to the GND will be open.

Can I supply Spin-Y with 5V when connecting to VESC?

Yes you can, the firmware manages it within 0-3.3V range independent of supply voltage, and the center voltage is still 1.65V, unless the supply voltage is lower than 3.3V.
