RC auto 1/5 MCD XR5 2025 - MAX FTR

€ 2.299,00 Inclusief belasting

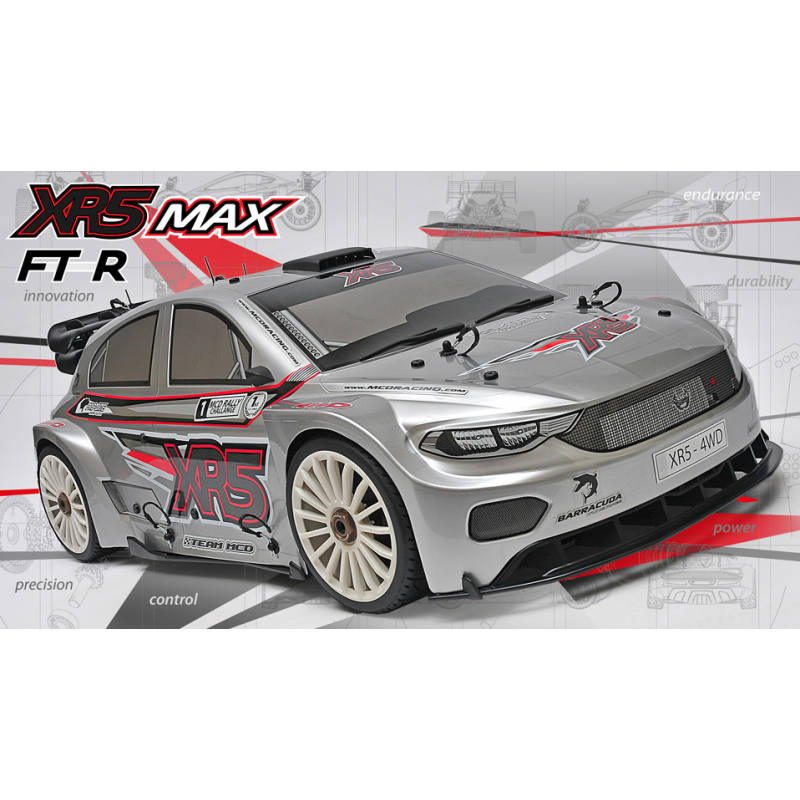

MCD XR5 MAX FTR

De MCD XR5 MAX-versie is gebaseerd op het MCD LONG-chassis.

De XR5 MAX PRO-versie is een slijtvaste versie met de basisuitrusting die nodig is voor langdurig circuitgebruik.

De XR5 MAX FT-R-versie is een evolutie van de MAX PRO-versie met een reeks aluminium opties om de auto lichter en betrouwbaarder te maken voor intensiever gebruik.

De XR5 MAX ULTIMATE versie is de ultieme evolutie van deze RC-auto, met een reeks aluminium opties. Het beste van de MCD XR5

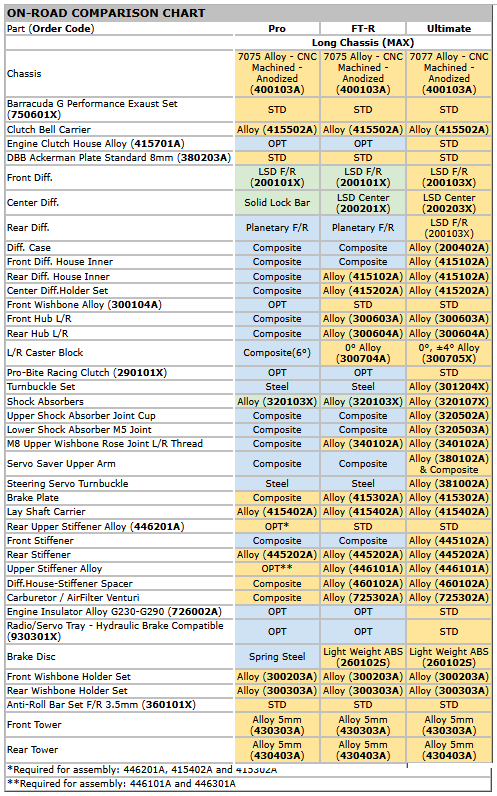

De verschillen in uitrusting tussen de 3 versies (PRO / FT-R / ULTIMATE) staan in de tabel hieronder.

MCD XR5 auto's worden geleverd ZONDER MOTOR. Scooter Passion staat tot uw beschikking voor de keuze en de opties te overwegen volgens uw verwachtingen

Aantal

Length : 1010 mm
Width : 480 mm
Overall height : 375 mm
Ground clearance : 25-42 mm
Weight : 14.6kg (depending on equipment installed)
Wheelbase : 610-620 mm (adjustable)
Trackwidth

: 410mm
Chassis material : 7075 Anodized T6 Alloy (4mm)
Suspension : Non-parallel non-line independent
Caster angle : 8°(6° - 10° adjustable)
Camber angle : Adjustable
Toe angle : In-board and out-board adjustable
Anti-squat : 3°(adjustable)
Rear-squat : 5°
Dive, Anti-dive : 6°-10°(adjustable)
Kick-up : 8°-10°(adjustable)
Shock absorber : Coil-over Oil-filled Internal High Pressure Cell
Transmission : Full-Time 4WD 3-Diff Shaft Driven
Gear ratio : 7,2:1 (18 available 7,2:1 to 10,67:1)
Tyre size : 65 x 160 mm

  • RC auto MCD XR5 1/5 MAX FT-R
  • Easy assembly/dis-assembly
  • Easy maintenance
  • Centralized and compacted parts layout on chassis
  • Elite racing design ultra-durable high performance parts
  • Fifth generation MCD chassis & suspension arms
  • Sophisticated full-time 4WD Shaft Driven mechanics
  • 3 Ball Drive Shaft
  • Easy gear mesh system
  • Easily removable one-piece electronics tray
  • CNC machined, anodized light-weight 7075 aircraft alloy chassis
  • Rigid and durable alloy wishbones
  • Solid and durable side guards
  • Easily removable alloy and composite front and rear diff houses
  • Easily removable alloy center diff carrier
  • Ultra durable front and rear adjustable brake system
  • Adjustable chassis rigidness
  • Adjustable wheelbase
  • Adjustable inboard toe and squat
  • Adjustable dive & anti-dive
  • Rear shock inside or outside assembly option
  • Easy engine removal
  • 5mm light-weight 7075 air craft alloy front and rear towers
  • Optimized multiple shock mounting holes
  • Coil-over extended alloy shock absorbers with High Pressurized Cell System
  • Anodized alloy shock bodies
  • Ultra hardened steel transmission gears
  • CNC machined anodized alloy engine carrier
  • Double ball bearing anti-roll bars
  • No-Stress-Effect polyamide front and rear bumper
  • Ultra durable steel ball cup-joints
  • Adaptive LSD differentials Front and Center
  • Front/central 90°&120° ramp self locking diffs
  • Planetary rear differential
  • Ackerman plate with ball-bearing
  • Easy gear mesh system
  • Super-Cooling V5 air ventilation system
  • Viper Racing Air Filters with dual layer foam and thermoplastic hose
  • Aerodynamic double rear wing
  • Composite Roll Cage
  • Barracuda G performance exhaust
  • Alloy Manifold
  • Alloy Rose-joints
  • Wide range of MCD Tyre options
  • Wide range of shock spring options
  • Adjustable CG
  • Adjustable weight distribution
  • Molded fuel tank with shake absorbing separators
  • Fully composite body accessories
  • Alloy hinge-pin holders
  • Drive and shock shaft boot
